DJI Agras T16

Optimized Power. Unrivaled Performance.

The Agras T16 has an improved overall structure with modular design and supports the highest payload and widest spray width ever in a DJI agricultural drone. With powerful hardware, an AI engine, and 3D-operation planning, the T16 brings operation efficiency to a whole new level.

16L Spray Tank

Core Module IP67 Rating

RTK Centimeter-Level Positioning

DBF Imaging Radar

Wide-Angle FPV Camera

AI Engine

Revolutionized Structure. Reliable Operation.

The all-new modular design of the T16 simplifies assembly and accelerates daily maintenance. An IP67 rating provides reliable protection for key components of the drone. A light, yet durable airframe is made of carbon fiber composites and can be quickly folded to 25% of its original size, making it easy for transportation. Both the battery and spray tank are easily swappable, significantly improving the efficiency of power and liquid supply.

Higher Payload. Enhanced Efficiency.

Supported by its outstanding flight performance, the T16 spray tank can carry up to 16 L, and the spray width has increased to 6.5 m. The spraying system has 4 delivery pumps and 8 sprinklers with a maximum spray rate of 4.8 L/min. The T16 can spray 24.7 acres (10 hectares) [1] per hour. The spraying system also has an all-new electromagnetic flow meter, providing higher precision and stability than conventional flow meters.

Spray Tank Volume

+60%

from 10L to 16L

Spray Width

+44%

from 4.5m to 6.5m

Spray Rate

+100%

from 2.4L/min to 4.8L/min

Hourly Operation Efficiency

+67%

from 6 to 10 hectares

Powerful System. Increased Safety.

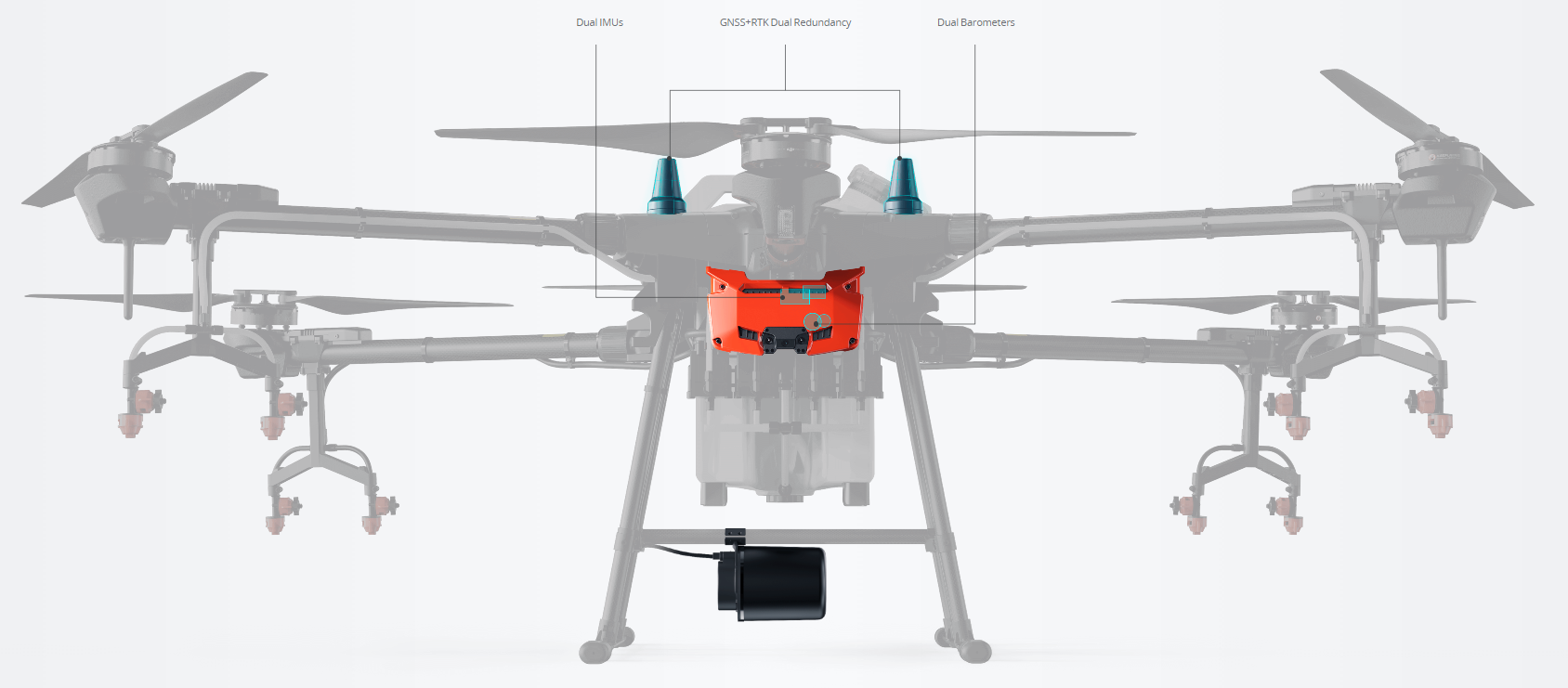

The all-new modular aerial-electronics system in the T16 has dual IMUs and barometers and adopts a propulsion signal redundancy design to ensure flight safety. The GNSS+RTK dual-redundancy system supports centimeter-level positioning. It also supports dual-antenna technology that provides strong resistance against magnetic interference.

Upgraded Radar. Easier Operation.

The T16’s upgraded radar system can sense the operating environment during the day or at night, without being affected by light or dust. It has greatly improved flight safety with forward and backward obstacle avoidance and a horizontal FOV (field of view) of 100°, double that of previous DJI agricultural drones. It can also detect the angle of a slope and adjust to it automatically even in mountainous terrain. This innovative radar system adopts Digital Beam Forming (DBF) technology, which supports 3D point cloud imaging that effectively senses the environment and helps to circumvent obstacles.

^{( T16 models sold in Thailand are not equipped with the DBF imaging radar.)}

*DBF Imaging Radar: 3D Point Cloud Imaging

Remote Control. Safety with Vision.

The T16 supports OcuSync 2.0 HD transmission technology which extends its control range to up to 3 km. It also has a wide-angle FPV camera and spotlights that can monitor aircraft operation during the day and at night to ensure flight safety.

Different Needs. Different Modes.

The T16 provides different modes for flat ground, mountains, and orchards, to meet most operational needs. Up to five T16 aircraft can be controlled by a single T16 remote controller simultaneously, doubling the efficiency of single-pilot operation.

Mountains

An outstanding propulsion system and slope angle detection technology make it easy to operate in mountainous terrain.

Orchards

Use the T16 with DJI Terra to build a 3D model of the operation area and identify fruit trees with AI technology. Then, create 3D operation plans according to tree distribution and altitude..

Flat Ground

Manual Operation Mode, A-B Route Operation Mode, and Route Operation Mode are available to cover most operational needs.

Comprehensive Solution. Intelligent Operation.

DJI Agriculture is committed to making the workflow of crop protection more efficient and intelligent. With drones and effective tools, DJI’s agriculture solution greatly simplifies operations, improves efficiency, and increases industrial upgrades.

1. Phantom 4 RTK

Centimeter-level Positioning
High-precision Data Collection
Image Collection of 247 Acres Within 25 Minutes^[3]

2. DJI Terra

Real-time Mapping
2D/3D Modeling
AI Operation Planning

3. DJI Agriculture Management Platform

Operation Data Management
Personnel Arrangement

4. Agras T16

High Efficiency Operation
24.7 Acres Within 1 Hour

Battery

2600W 4-Channel Intelligent Battery Charger

Up to four batteries can be charged simultaneously. When using the single-channel quick charging mode, a full charge only takes 20 minutes, a 50% increase in speed from the previous generation. The charger has a built-in battery health management system that monitors critical data in real time, such as voltage and temperature, to ensure charging safety.

T16 Intelligent Flight Battery

The T16 Intelligent Flight Battery has a capacity of 17,500 mAh and a 14S high voltage system that reduces power consumption. It is designed with an IP54-rated all-metal housing, and heat dissipation efficiency has increased by 140% from the previous generation. Supported by cell-balancing technology, the battery has an increased charging cycle of up to 400, 100% higher than the previous generation, significantly reducing operating costs.

More information about DJI Agras T16

Specification

AIRFRAME

Max Diagonal Wheelbase	1883 mm
Dimensions	2509×2213×732 mm (Arms and propellers unfolded) 1795×1510×732 mm (Arms unfolded and propellers folded) 1100×570×732 mm (Arms and propellers folded)

SPRAYING SYSTEM- SPRAY TANK

Volume	Rated: 15 L, Full: 16 L
Operating Payload	Rated: 15 kg, Full: 16 kg

SPRAYING SYSTEM - NOZZLE

Model	XR11001VS (Standard], XR110015VS (Optional, purchase separately)
Quantity	8
Max Spray Rate	XR11001VS: 3.6 L/min, XR110015VS: 4.8 L/min
Spray Width	4-6.5 m (8 nozzles, at a height of 1.5-3 m above crops)
Droplet Size	XR11001VS：130 - 250 μm XR110015VS：170 - 265 μm (Subject to operating environment and spray rate)

SPRAYING SYSTEM - FLOW METER

Measurement Range	0.45-5 L/min
Error	< ±2%
Measurable Liquid	CConductivity > 50 mS/cm (Liquids such as water or pesticides that contains water)

FLIGHT PARAMETERS

Operating Frequency	2.4000 GHz-2.4835 GHz 5.725 GHz-5.850 GHz *
EIRP	2.4 GHz SRRC/ CE / MIC/ KCC: < 20 dBm FCC / NCC: < 26 dBm 5.8 GHz SRRC/ NCC/ FCC: < 26 dBm
Total Weight (Excluding battery)	18.5 kg
Standard Takeoff Weight	41 kg
Max Takeoff Weight	42 kg (At sea level)
Max Thrust-Weight Ratio	2.05 (Takeoff weight of 39.5 kg)
Hovering Accuracy (With strong GNSS signal)	D-RTK enabled: Horizontal: ±10 cm, Vertical: ±10 cm D-RTK disabled: Horizontal: ±0.6 m, Vertical: ±0.3 m (Radar module enabled: ±0.1 m)
RTK/ GNSS Operating Frequency	RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5 GNSS: GPS L1, GLONASS F1, Galileo E1
Battery	DJI-approved battery pack (AB2-17500mAh-51.8V)
Max Power Consumption	5600 W
Hovering Power Consumption	4600 W (Takeoff weight of 39.5 kg)
Hovering Time**	18 min (Takeoff weight of 24.5 kg with a 17500 mAh battery) 10 min (Takeoff weight of 39.5 kg with a 17500 mAh battery)
Max Pitch Angle	15°
Max Operating Speed	7 m/s
Max Flying Speed	10 m/s (With strong GNSS signal)
Max Wind Resistance	8 m/s
Max Service Ceiling Above Sea Level	2000 m
Recommended Operating Temperature	0° to 40°C (32° to 104°F)
* To comply with local laws and regulations, this frequency is not available in some countries or regions. ** Hovering time acquired at sea level with wind speeds lower than 3 m/s.

FPV CAMERA

FOV	Horizontal: 98°, Vertical: 78°
Resolution	1280×960 30 fps
FPV Spotlight	FOV: 110°, Max brightness: 12 lux at 5 m of direct light

DBF IMAGING RADAR

Model	RD2418R
Operating Frequency	SRRC (China)/ CE (Europe)/ FCC (United States): 24.00 GHz-24.25 GHz
Power Consumption	MIC (Japan) / KCC (Korea): 24.05 GHz-24.25 GHz
EIRP	15 W
Altitude Detection & Terrain Follow*	MIC/ KCC/ CE/ FCC: 20 dBm
Obstacle Avoidance System*	Altitude detection range: 1-30 m
IP Rating	Stabilization working range: 1.5-15 m
*The effective radar range varies depending on the material, position, shape, and other properties of the obstacle.

PROPULSION SYSTEM - MOTOR

Stator Size	100×15 mm
KV	75 rpm/V
Max Thrust	13.5 kg/rotor
Max Power	2400 W/rotor
Weight	616 g

PROPULSION SYSTEM - FOLDABLE PROPELLERS (R3390)

Diameter × Pitch	33×9 in
Weight (Single propeller)	90 g

PROPULSION SYSTEM - ESC

Max Working Current (Continuous)	40 A
Max Working Voltage	58.8 V (14S LiPo)

REMOTE CONTROLLER

Model	GL300N
Operating Frequency	2.4000 GHz-2.4835 GHz 5.725 GHz- 5.850 GHz*
Effective Transmission Distance (Unobstructed, free of interference)	SRRC/ MIC/ KCC/ CE: 3 km NCC/ FCC: 5 km
EIRP	2.4 GHz SRRC/ CE/ MIC/ KCC: < 20 dBm FCC / NCC: < 26 dBm 5.8 GHz SRRC/ NCC/ FCC: < 26 dBm
Display	5.5-inch screen, 1920×1080, 1000 cd/m2, Android system 4G RAM＋16G ROM storage
Power Consumption	16 W (Typical value)
Operating Temperature	-10° to 40°C (14° to 104°F)
Storage Temperature	Less than 3 months: -20° to 45°C (68° to 113°F) More than 3 months: 22° to 28°C (70° to 82°F)
Charging Temperature	5° to 40°C (40° to 104°F)
* To comply with local laws and regulations, this frequency is not available in some countries or regions.

REMOTE CONTROLLER INTELLIGENT BATTERY

Model	WB37-4920mAh-7.6V
Battery Type	2S LiPo
Capacity	4920 mAh
Voltage	7.6 V
Energy	37.39 Wh
Charging Temperature	5° to 40°C (40° to 104°F)

REMOTE CONTROLLER CHARGING HUB

Model	WCH2
Input Voltage	17.3-26.2 V
Output Voltage and Current	8.7 V, 6 A
Operating Temperature	5° to 40°C (40° to 104°F)

REMOTE CONTROLLER POWER ADAPTER

Model	A14-057N1A
Input Voltage	100-240 V, 50/60 Hz
Output Voltage	17.4 V
Rated Power	57 W
